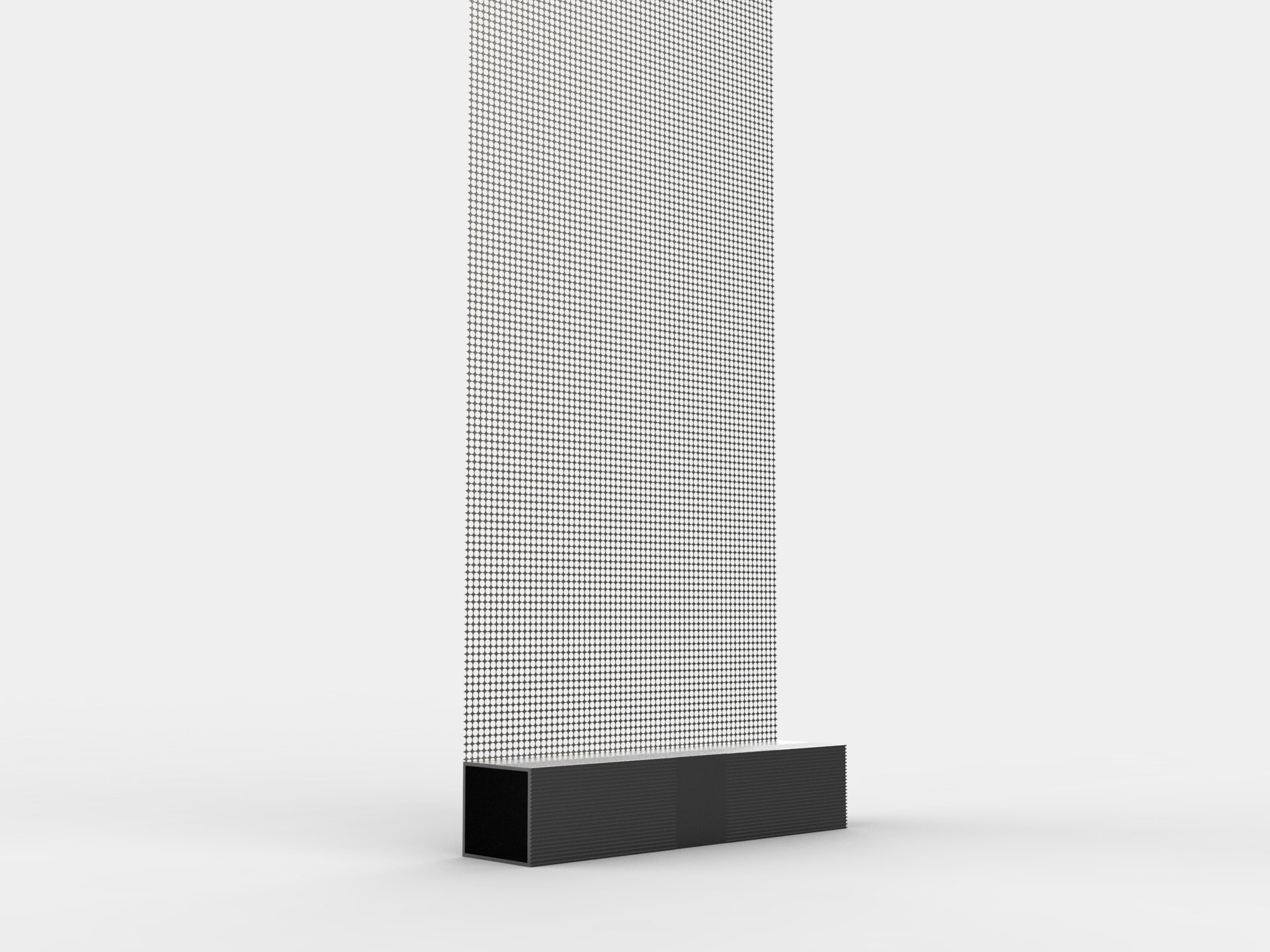

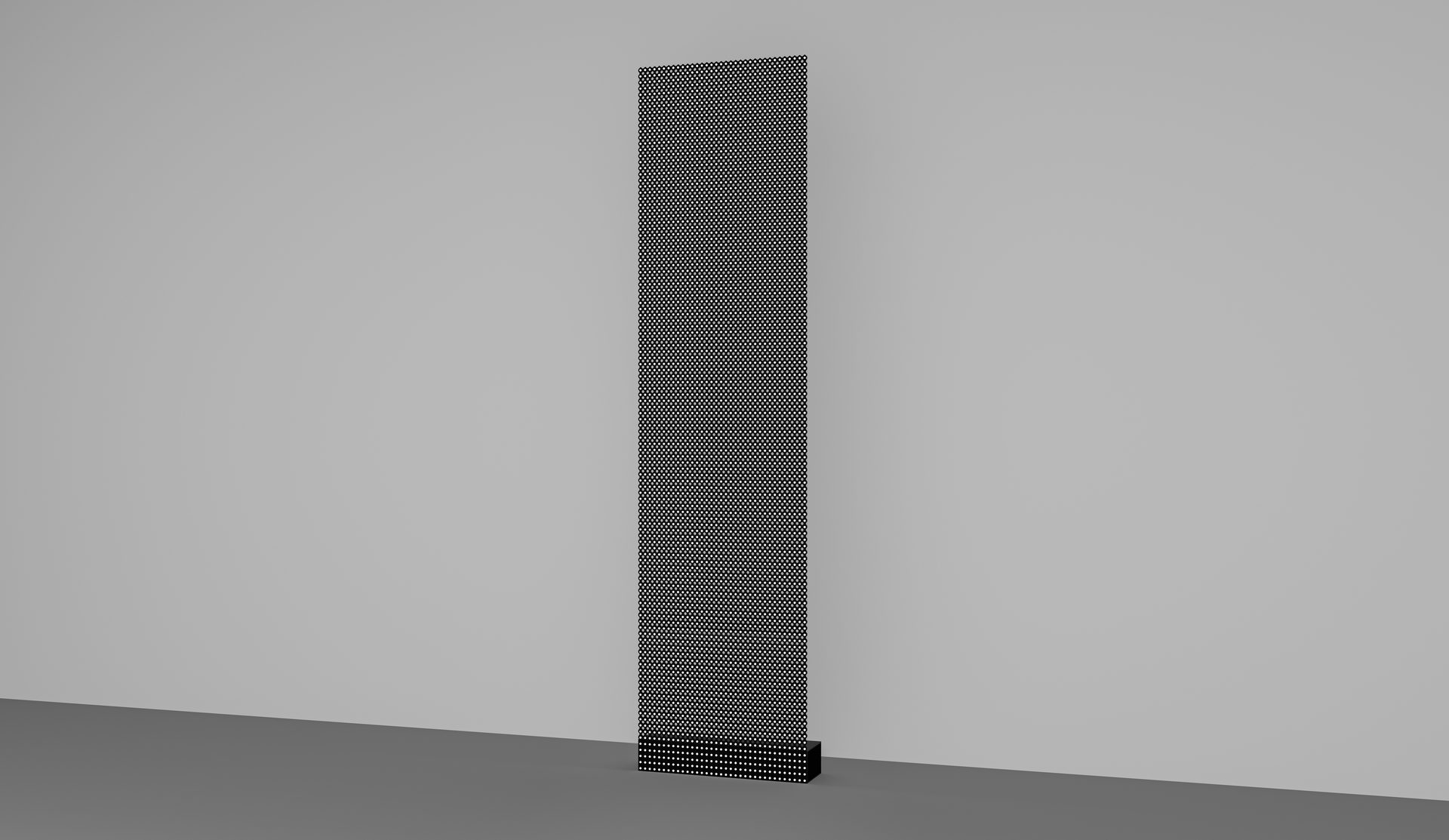

SMD Holographic LED P6.25 curved panel, front view
Holographic

SMD Holographic LED P6.25Transparent LED Display

The go-to choice for architects designing atriums, escalator voids, and feature walls — bright enough to cut through daylight, transparent enough to preserve the open feel. P6.25 balances resolution, brightness, and cost across mid-range spans, so a large architectural surface stays on budget without looking compromised. Specify it where viewers stand several metres back and the building has to keep breathing.

  • Optimised 6.25 mm pitch for mid-range viewing
  • 6,000-nit output reads clearly in daylit interiors
  • Up to 80% transparency keeps sightlines open
Request a QuoteAll products→

Overview

P6.25 strikes the balance most projects ask for: bright enough to read against daylight, transparent enough to keep a space open, and economical across larger spans. A natural fit for atriums, escalator voids, and feature walls viewed from several metres back.

Full specifications
Pixel pitch
6.25 mm
Brightness
6,000 nits
Transparency
Up to 80%
Refresh rate
3,840 Hz
Cabinet size
500 × 1000 mm
Weight
≈ 10.5 kg / panel
Drive method
Common cathode, SMD
Lifespan
100,000 hrs

Features & advantages

  • Optimised 6.25 mm pitch for mid-range viewing
  • 6,000-nit output reads clearly in daylit interiors
  • Up to 80% transparency keeps sightlines open
  • Cost-efficient across large architectural spans
  • Seamless cabinet-to-cabinet alignment

Where it works

Environments this transparent LED display is built for.

SMD Holographic LED P6.25 — Architecture
Architecture
SMD Holographic LED P6.25 — Atriums
Atriums
SMD Holographic LED P6.25 — Digital signage
Digital signage

Related products

Interested in the SMD Holographic LED P6.25?

Tell us about your space and we'll come back with a tailored spec and an indicative price.

Request a QuoteExplore More Products→
