Crystal Film LED Screen

Transparent by day. A screen by night. Self-adhesive flexible LED film — stick it on glass and the window becomes a media wall.

Request a Quote View Full Specs ↓
≥90%Transparency
2.5 mmThickness
1.3 kgPer module
01 What it is

What is the Crystal Film LED Screen?

Crystal Film is a self-adhesive, flexible transparent LED display: driver-integrated Mini-LED beads encapsulated in a transparent film just 2.5 mm thick. A proprietary adhesive-potting process gives the film its own bond — it applies straight onto glass with no steel structure and no drilling, and plays the moment power and signal are connected.

With transparency above 90%, the screen is close to invisible when off and never blocks daylight. Patented invisible-grid circuitry with in-bead driver ICs delivers industry-leading clarity, and a 6 cm minimum bend diameter lets the film follow columns, arcs, and shaped glazing.

Storefront · Glass Facade · Mall · Showroom · Airport · Exhibition

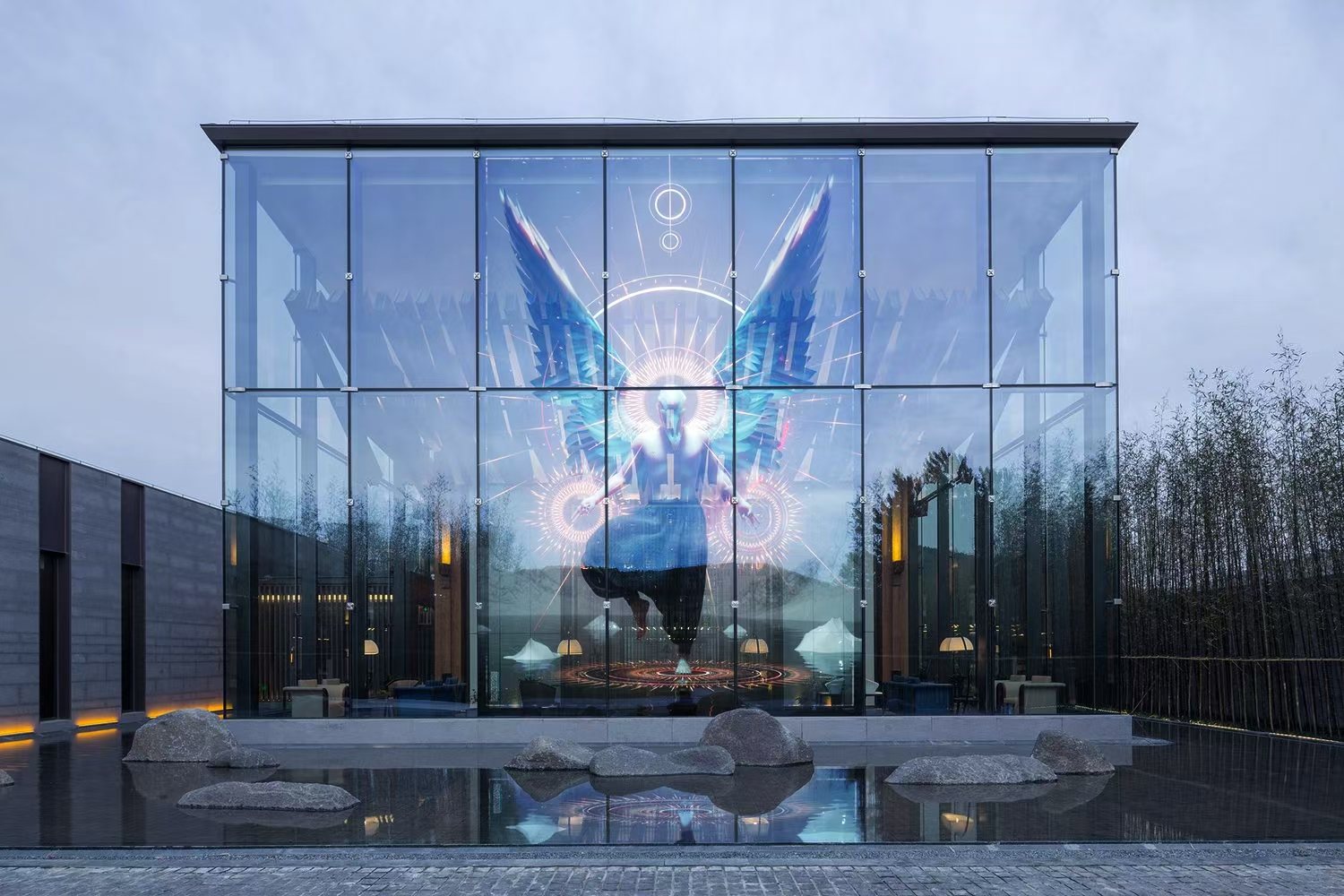

Crystal Film on a glass pavilion in daylight — fully transparent
90%+transparency
2.5 mmthickness
5 kg/m²weight
3,840 Hzrefresh rate
100,000 hLED lifespan
Ø 6 cmmin bend diameter
02 Core Features

Why teams specify it

▶

High Transparency

90–95% depending on pitch. This clip is filmed from behind a running screen — the street stays fully visible. Hover to play.

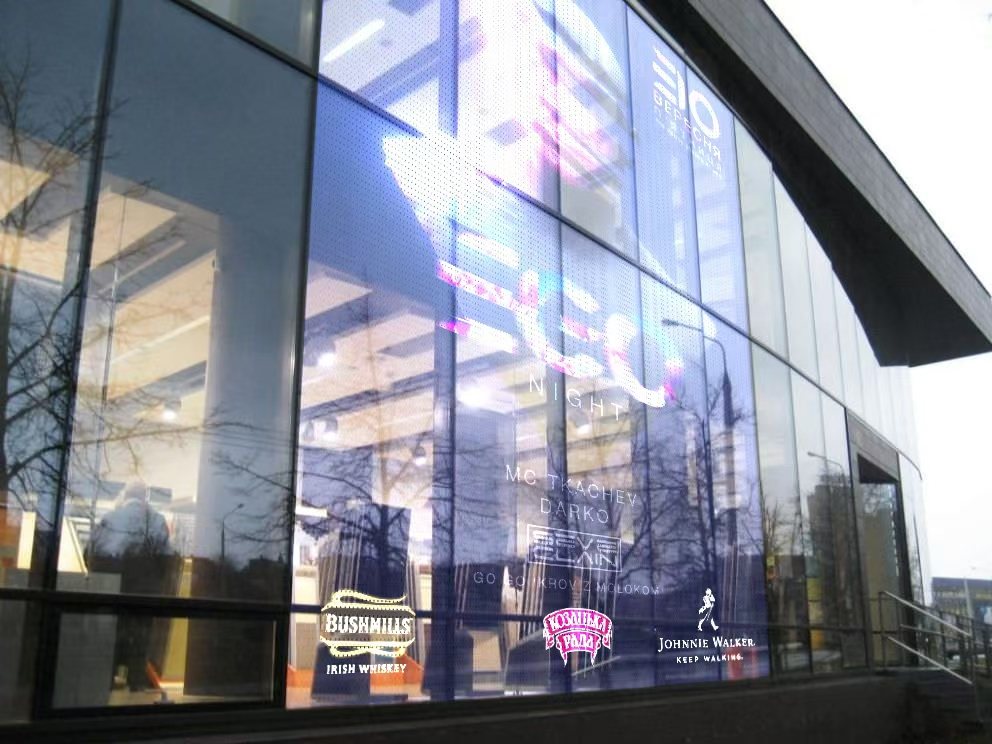

Stick and play installation on street-front glazing

Stick & Play — No Steel

The adhesive-potted film carries its own bond and sticks straight onto glass, strengthening over time. Connect power and it plays.

▶

Flexible & Bendable

Minimum bend diameter of 6 cm — cylinders, arcs and shaped glazing that rigid panels can never follow. Hover to play.

Ultra-Thin & Light

2.5 mm thin and about 5 kg/m² — near-zero load on the curtain wall, modules handled by one person.

Reliable by Design

Bi-directional drive hands over to a backup signal path on any single-point fault; failed beads stay dark instead of flickering; true 16-bit grayscale.

Weather & Flame Resistant

UV-stable 5–10 years without yellowing, V1 flame-retardant rating, -20 ~ 55 °C operating window.

03 Models & Specs

Find the right model

Five standard pitches on the same 2.5 mm film. Switch models for full specifications.

P6.25 in retail windows
P6.25 — close-range retail & showrooms
Pixel Pitch6.25 × 6.25 mm
Module Size1000 × 400 mm
Module Resolution160 × 64 (10,240 dots)
Pixel Density25,600 dots/m²
Transparency90%
LED BeadREE1515
Viewing Distance≥ 6 m

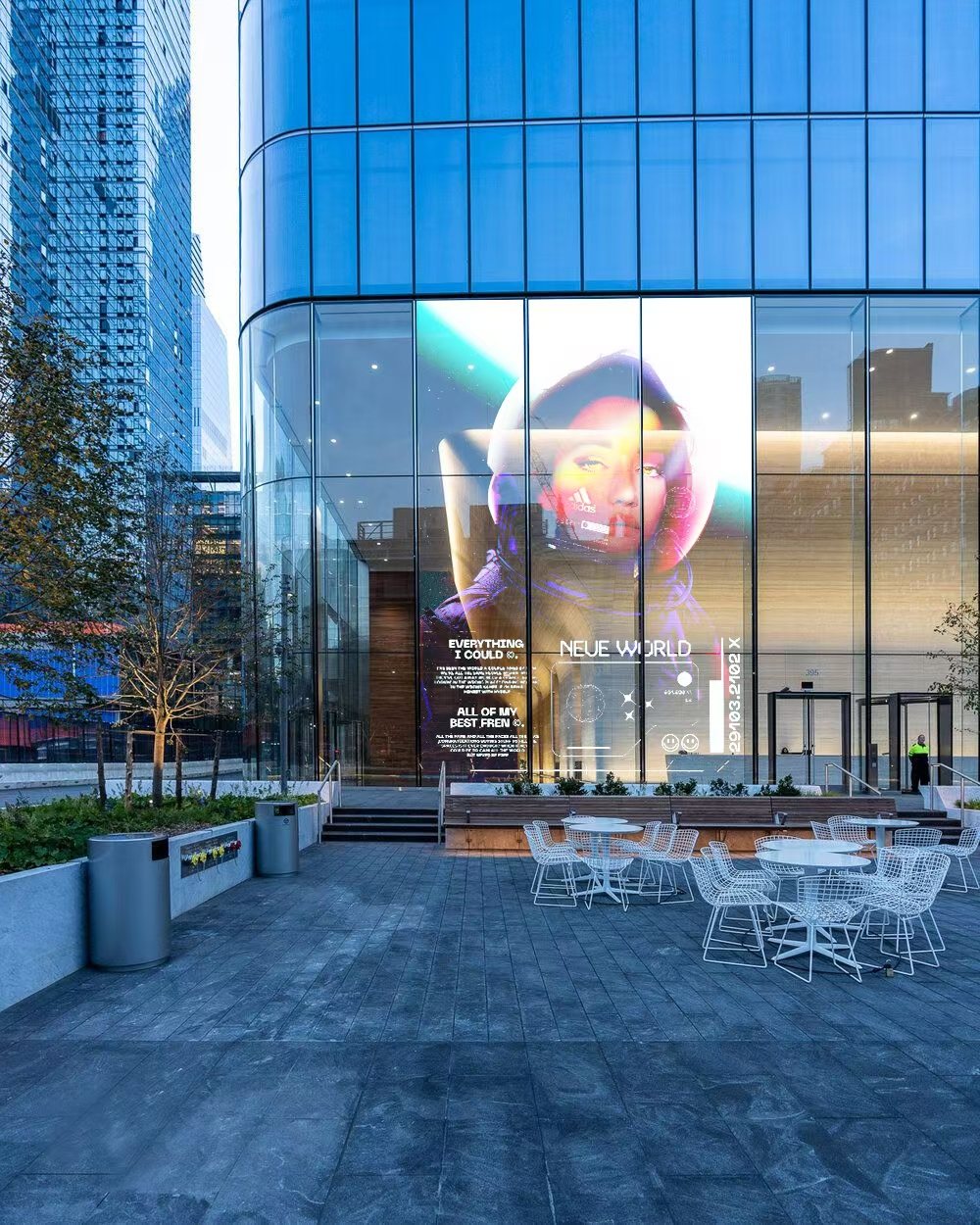

P8 on corporate podium glazing
P8 — street-front glazing, mid distance
Pixel Pitch8 × 8 mm
Module Size1000 × 400 mm
Module Resolution125 × 50 (6,250 dots)
Pixel Density15,625 dots/m²
Transparency92%
LED BeadREE1515
Viewing Distance≥ 8 m

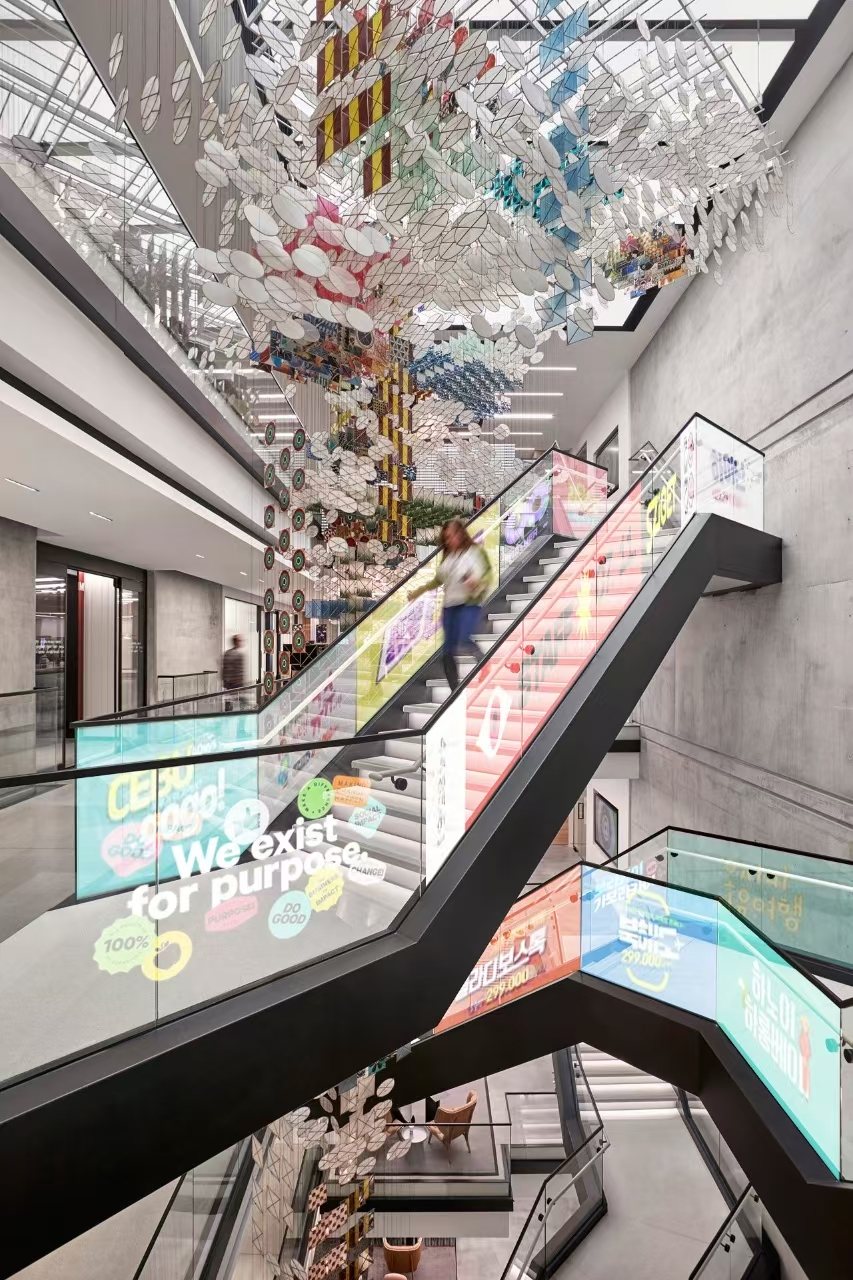

P10 on mall balustrades
P10 — large glazing, higher transparency
Pixel Pitch10 × 10 mm
Module Size1000 × 400 mm
Module Resolution100 × 40 (4,000 dots)
Pixel Density10,000 dots/m²
Transparency94%
LED BeadREE1515
Viewing Distance≥ 10 m

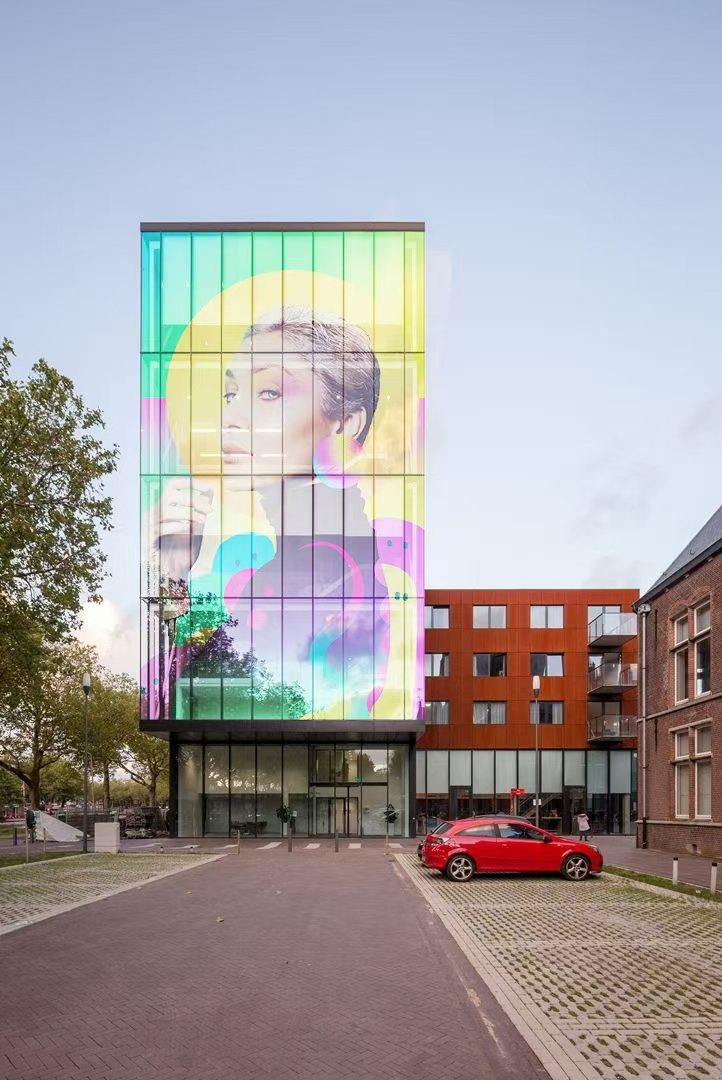

P15 on a building facade
P15 — facades viewed across the street
Pixel Pitch15 × 15 mm
Module Size990 × 390 mm
Module Resolution66 × 26 (1,716 dots)
Pixel Density4,356 dots/m²
Transparency94%
LED BeadREE2022
Viewing Distance≥ 15 m

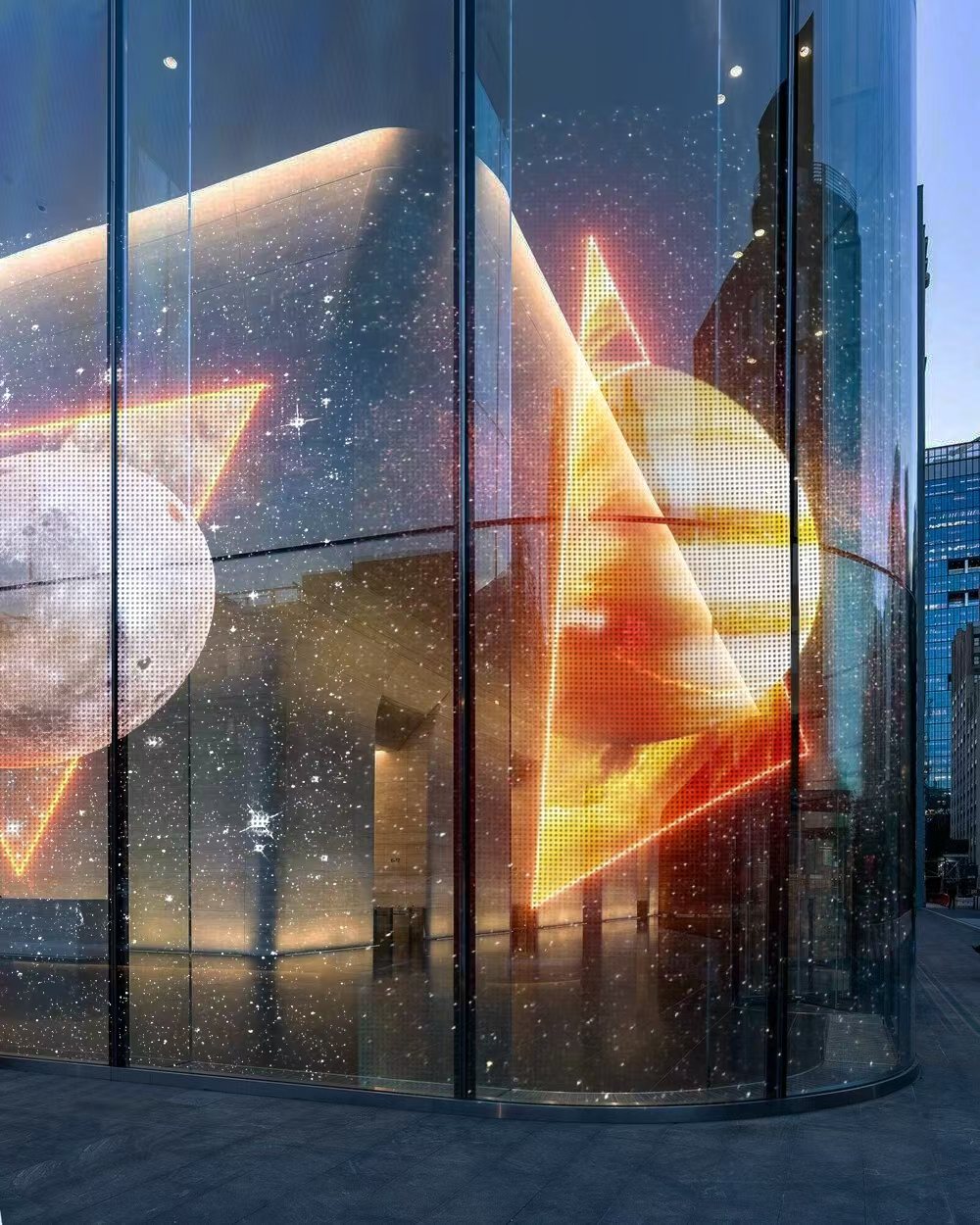

P20 media facade at night
P20 — maximum transparency media facades
Pixel Pitch20 × 20 mm
Module Size1000 × 400 mm
Module Resolution50 × 20 (1,000 dots)
Pixel Density2,500 dots/m²
Transparency95%
LED BeadREE2022
Viewing Distance≥ 20 m

Shared across every model

Brightness2,000 / 4,000 nits
Screen thickness2.5 mm
Module weight1.3 kg (≈5 kg/m²)
Peak power600 W/m²
Average power200 W/m²
Refresh rate3,840 Hz
Grayscale16-bit
Viewing angle160°
Drive methodStatic
Control systemNova / Colorlight
Input voltageAC 110–240 V
Pixel configR1G1B1
Lifespan100,000 h
Environment-20~55 °C · 10–90% RH

How far is your audience?

Rule of thumb: the pitch number ≈ the closest comfortable viewing distance in metres. Drag the slider.

2 m10 m20 m30 m
6 m

P5 and P6 pitches are available as engineering customisations for specific projects.

04 Applications

Where it earns its keep

Tap any scene to take a closer look.

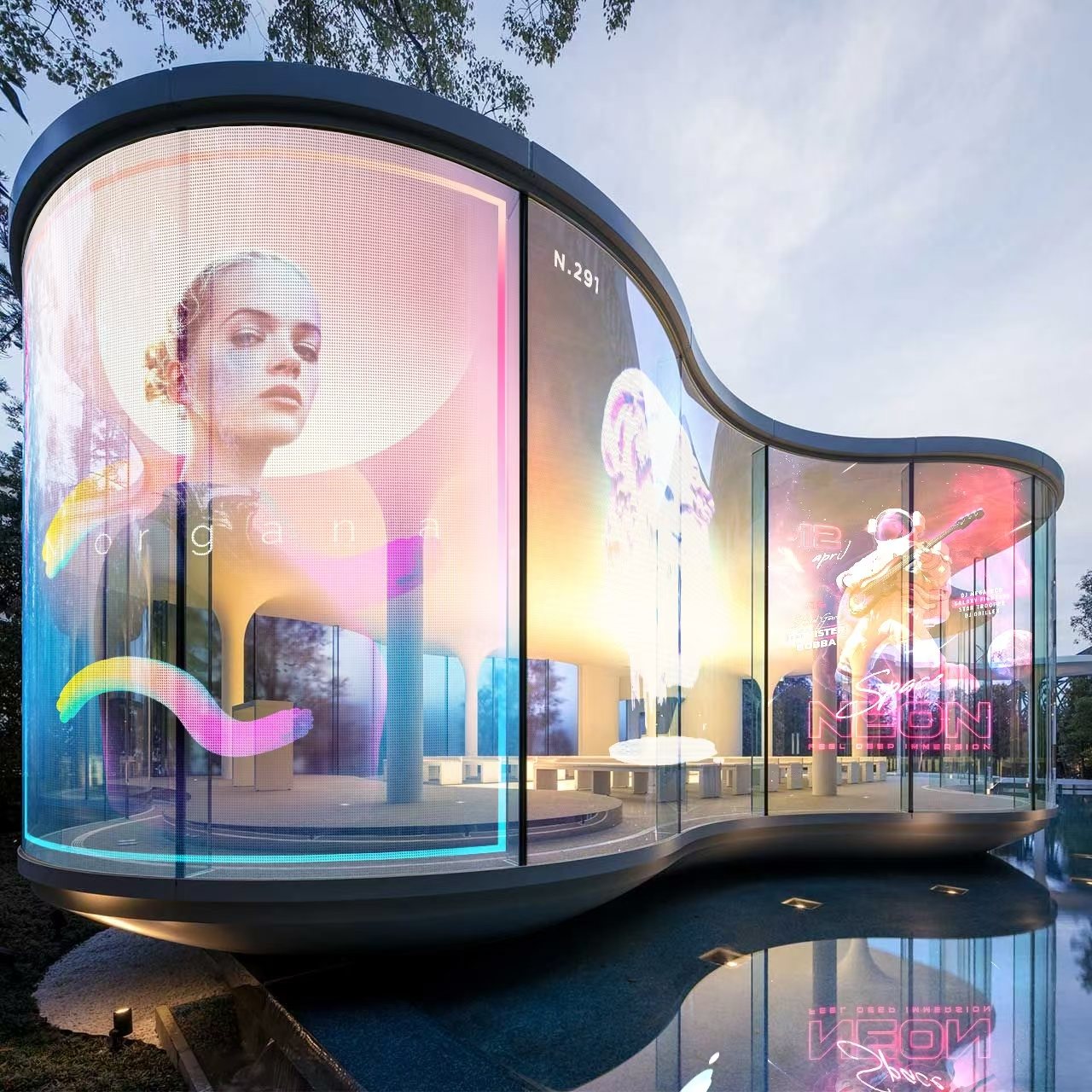

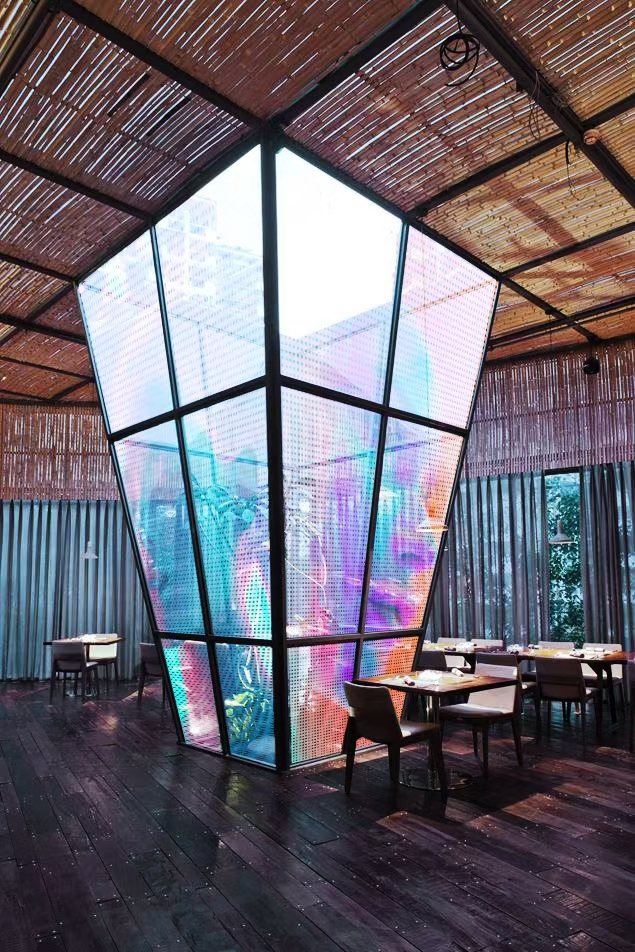

Curved glass facade at nightArchitectural Facade Glass pavilionGlass Pavilion Curved irregular pavilionCurved & Irregular Street-front glazingStreet-front Glazing Retail windowRetail Window Mall interiorMall Interior Restaurant glassHospitality & F&B Corporate podiumCorporate Media facadeMedia Facade
05 Installation

No steel structure — stick, connect, play.

01

Clean & Align

Clean the glass thoroughly and set out the screen position with an infrared level.

02

Peel & Stick

Peel the release liner — the film's own adhesive bonds it to the glass. Press flat with a silicone roller, top to bottom.

03

Tile & Seam

Align LED rows and columns across modules and roller-press the seams flush.

04

Connect & Play

Connect power and signal (Nova or Colorlight), power on, and commission the display.

06 Case Studies

Real installs, rolling

View all projects →

Hover (or tap) any project to play it.

Beijing Daxing Int'l AirportP6.25 · Beijing
▶
Coca-Cola Experience CenterP6.25 · China
▶
Yoga StudioP6.25 · Hong Kong
▶
Cylindrical Column WrapP6.25 · curved splice
▶
Mall Atrium — rear viewP8 · Uzbekistan
▶
Corporate HQ Window WallP8 · Middle East
▶
07 FAQ

Questions, answered

Can you see the screen when it's off?

Transparency is 90%+ — from about three metres away the film is close to invisible, and it doesn't reduce interior daylight.

Do I need a steel structure or drilling?

No. The film bonds to the glass with its own adhesive; only the small power box needs fixing.

How much power does it draw?

200 W/m² on average, 600 W/m² peak (full-white at maximum brightness). Typical video content runs far below peak.

Can it be applied to curved glass?

Yes — minimum bend diameter is 6 cm, so cylinders and arcs are routine.

What happens if something fails?

Single-point faults are bypassed automatically without blacking the screen, and individual beads can be repaired in place.

How do I publish content?

Nova or Colorlight control systems, synchronous or asynchronous, published from a PC or phone.

Can it be used outdoors?

The film mounts on the inside of the glass and displays through it (semi-outdoor). UV-stable for 5–10 years.

What's the minimum order?

We quote per project — no fixed MOQ. Send your wall size and we'll spec the right system.

Let's spec the Crystal Film for your space

Send the glazing dimensions and viewing distance — right pitch, clear spec, indicative price within 24 hours.
