Invisible on the glass. Unmissable when it plays. A borderless hollow-mesh PCB under 3 mm thick that floats imagery on glass.
Built on a hollow, mesh-pattern circuit PCB with a fully borderless structure. At under 3 mm thick it can be bent, cut to size, and bonded onto transparent glass until screen and glazing read as a single surface.
Proprietary driver ICs keep perceived transparency above 80% across the range — up to 93% on P10. High pixel density renders fine detail at close range, with 60 fps playback and high-refresh 3D at 120 fps, so content appears to float on the glass.
Retail Window · Showroom · Airport · Auto Dealership · Glass Facade · Culture & Tourism

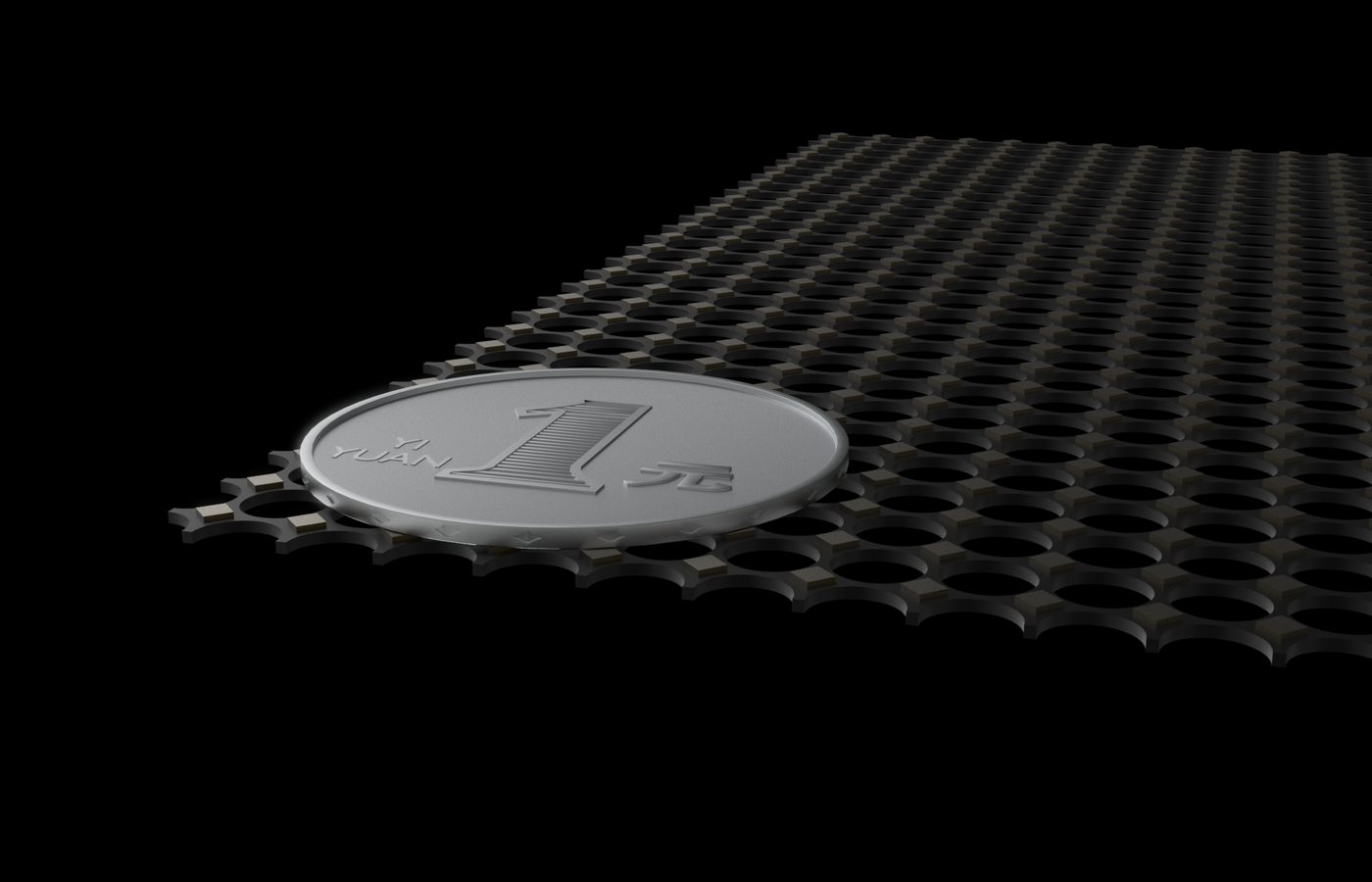

Next to a coin, the panel edge almost disappears. Bonded to glass it reads as part of the glazing itself.
From 1.2 kg per module — panels carry to site and onto the glass without lifting gear.
The hollow mesh circuit preserves the architecture and its daylight — content stops, the screen vanishes.
Modules curve against inner arcs and trim to size, following shaped and irregular glazing without custom tooling.
Up to 160,000 dots/m² on P2.5, 4,000:1 contrast, colour temperature tunable 2,000–9,500 K, 3D at 120 fps.

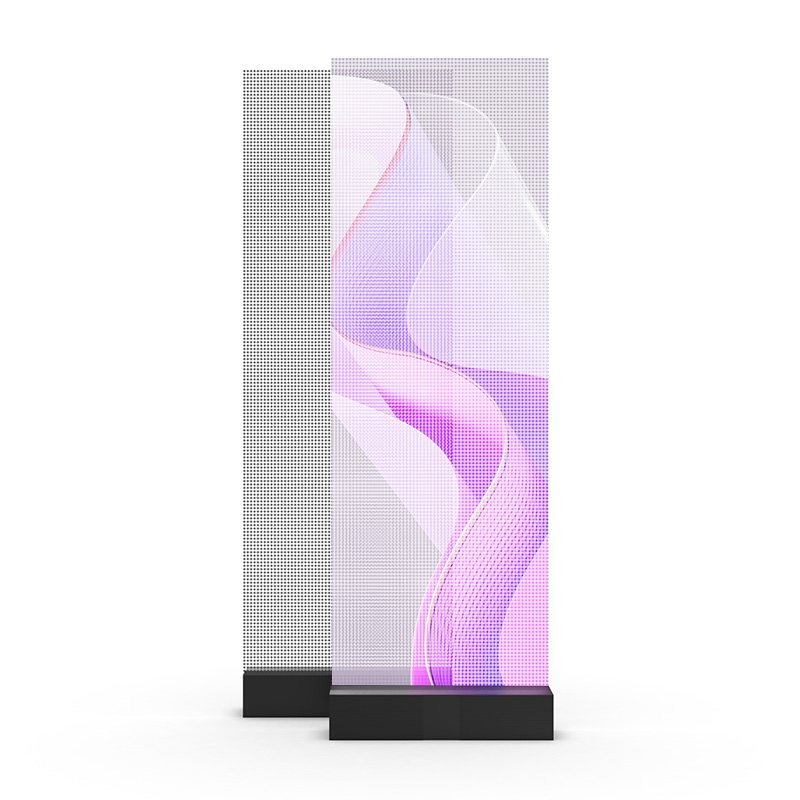

Standard modules butt-join vertically and extend horizontally without limit — one continuous image.

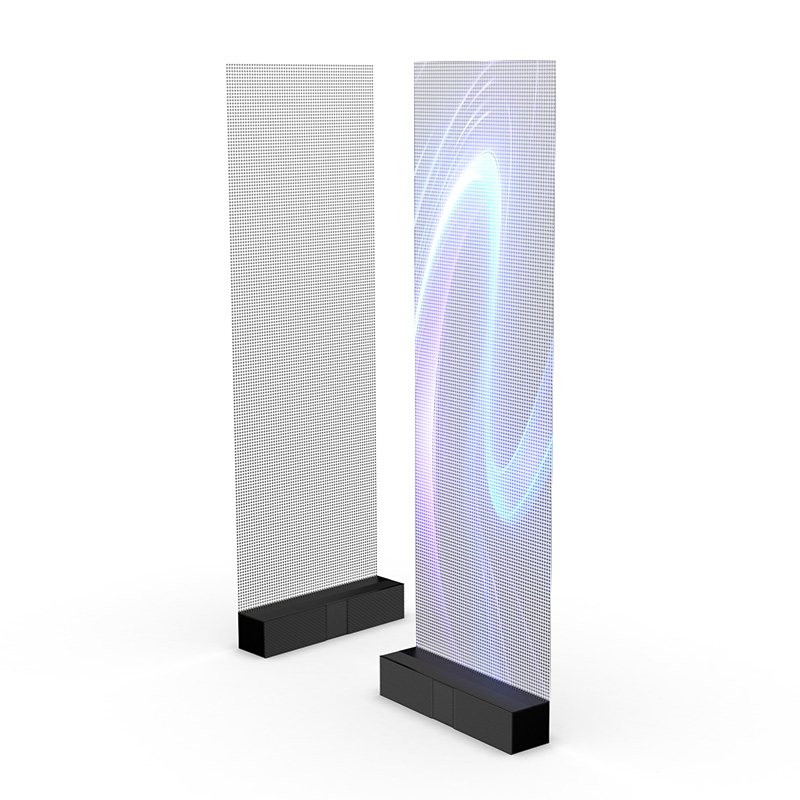

| P2.5 — eye-level windows, 2–4 m viewing | |
|---|---|
| Pixel Pitch | 2.5 × 2.5 mm |
| Pixel Density | 160,000 dots/m² |
| Transparency | 70% |
| Brightness | ≥ 1,800 cd/m² |
| Module Width / Length | 125 mm · 1035 / 1235 mm |
| Module Resolution | 50 × 400 / 50 × 480 |
| Peak / Average Power | 800 / 350 W/m² |
| Viewing Distance | ≥ 2.5 m |

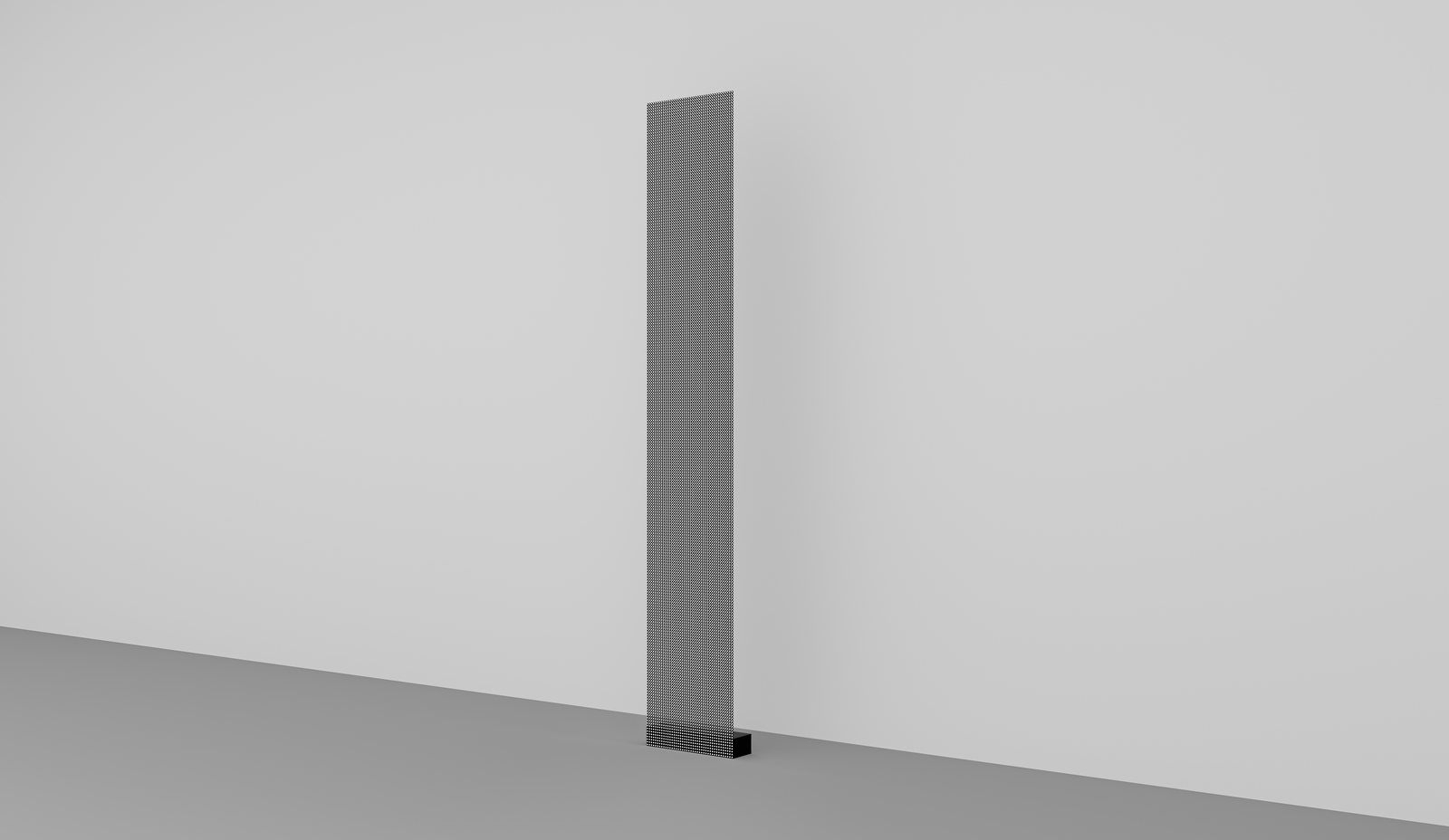

| P3.91 — showroom pieces & premium windows | |
|---|---|
| Pixel Pitch | 3.91 × 3.91 mm |
| Pixel Density | 65,536 dots/m² |
| Transparency | 80% |
| Brightness | ≥ 3,000 cd/m² |
| Module Width / Length | 250 mm · 1035 / 1235 / 1535 mm |
| Module Resolution | 64 × 256 / 64 × 307 / 64 × 384 |
| Peak / Average Power | 1,000 / 370 W/m² |
| Viewing Distance | ≥ 4 m |

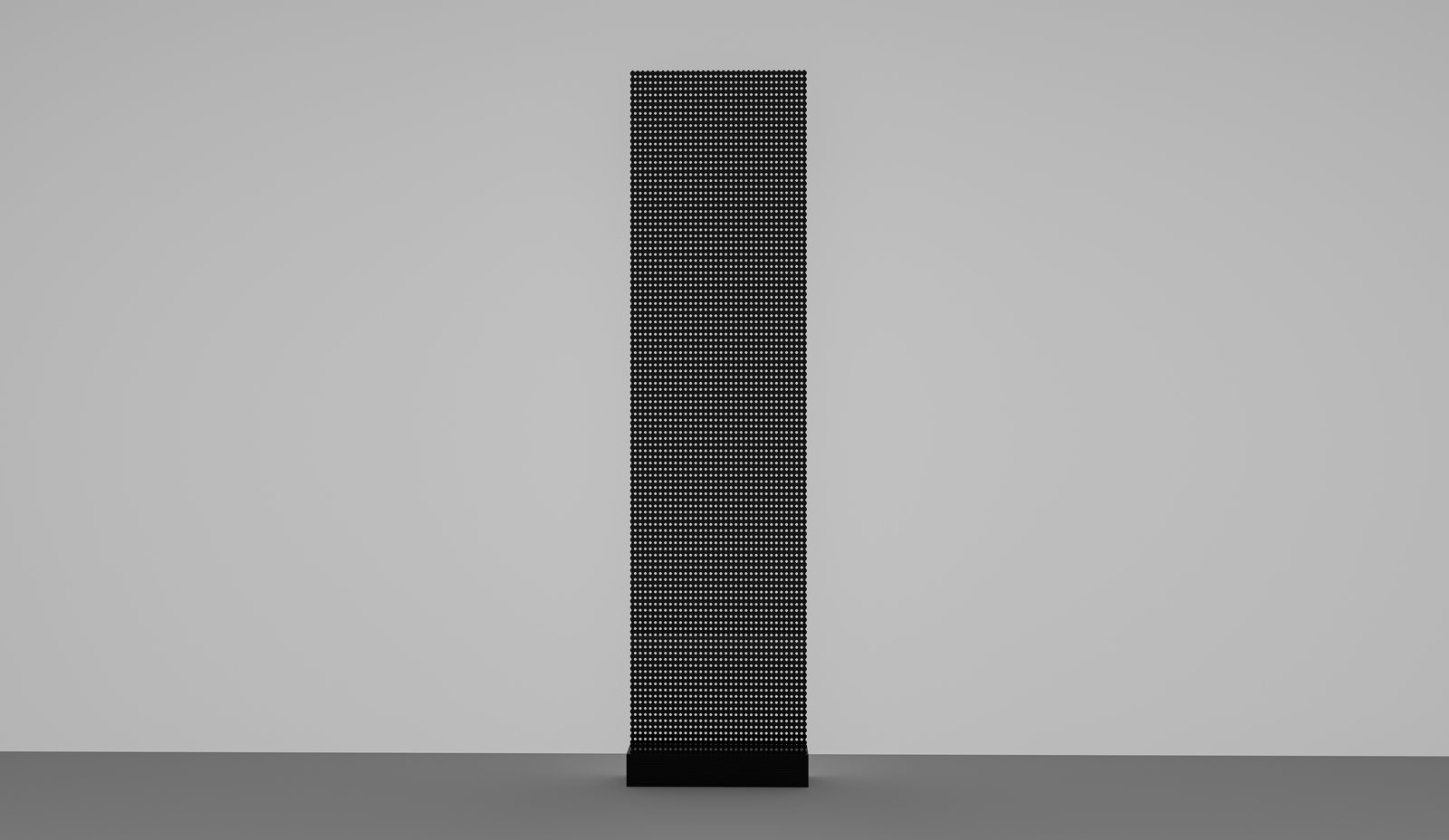

| P6.25 — the all-rounder for storefronts | |
|---|---|
| Pixel Pitch | 6.25 × 6.25 mm |
| Pixel Density | 25,600 dots/m² |
| Transparency | 90% |
| Brightness | ≥ 5,000 cd/m² |
| Module Width / Length | 250 mm · 1235 / 1535 mm |
| Module Resolution | 40 × 192 / 40 × 240 |
| Peak / Average Power | 1,000 / 370 W/m² |
| Viewing Distance | ≥ 6 m |

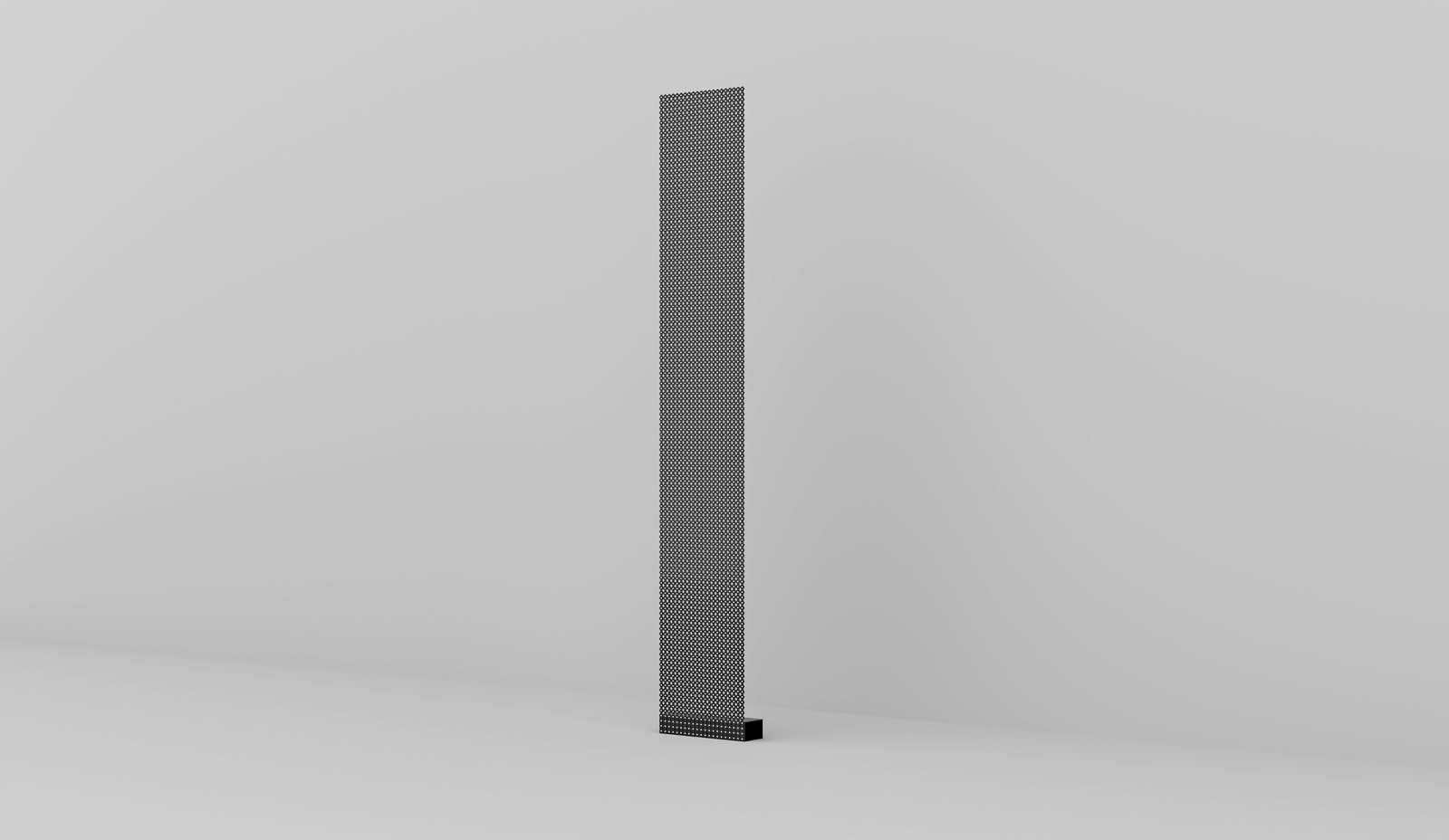

| P10 — highest transparency on big glass | |
|---|---|
| Pixel Pitch | 10 × 10 mm |
| Pixel Density | 10,000 dots/m² |
| Transparency | 93% |
| Brightness | ≥ 5,000 cd/m² |
| Module Width / Length | 250 mm · 1035 / 1535 mm |
| Module Resolution | 25 × 100 / 25 × 150 |
| Peak / Average Power | 1,000 / 370 W/m² |
| Viewing Distance | ≥ 10 m |
The pitch number ≈ the closest clear viewing distance in metres. Drag the slider.
Product showcases and promotions that float on the glass while the store stays visible behind.
Flight information and wayfinding with a sense of technology — readable without blocking the concourse.
3D vehicle displays and configurators on showroom glazing — exterior and interior detail without entering.
Brand presence and dynamic content on building glass, preserving transparency and the architect's sightlines.

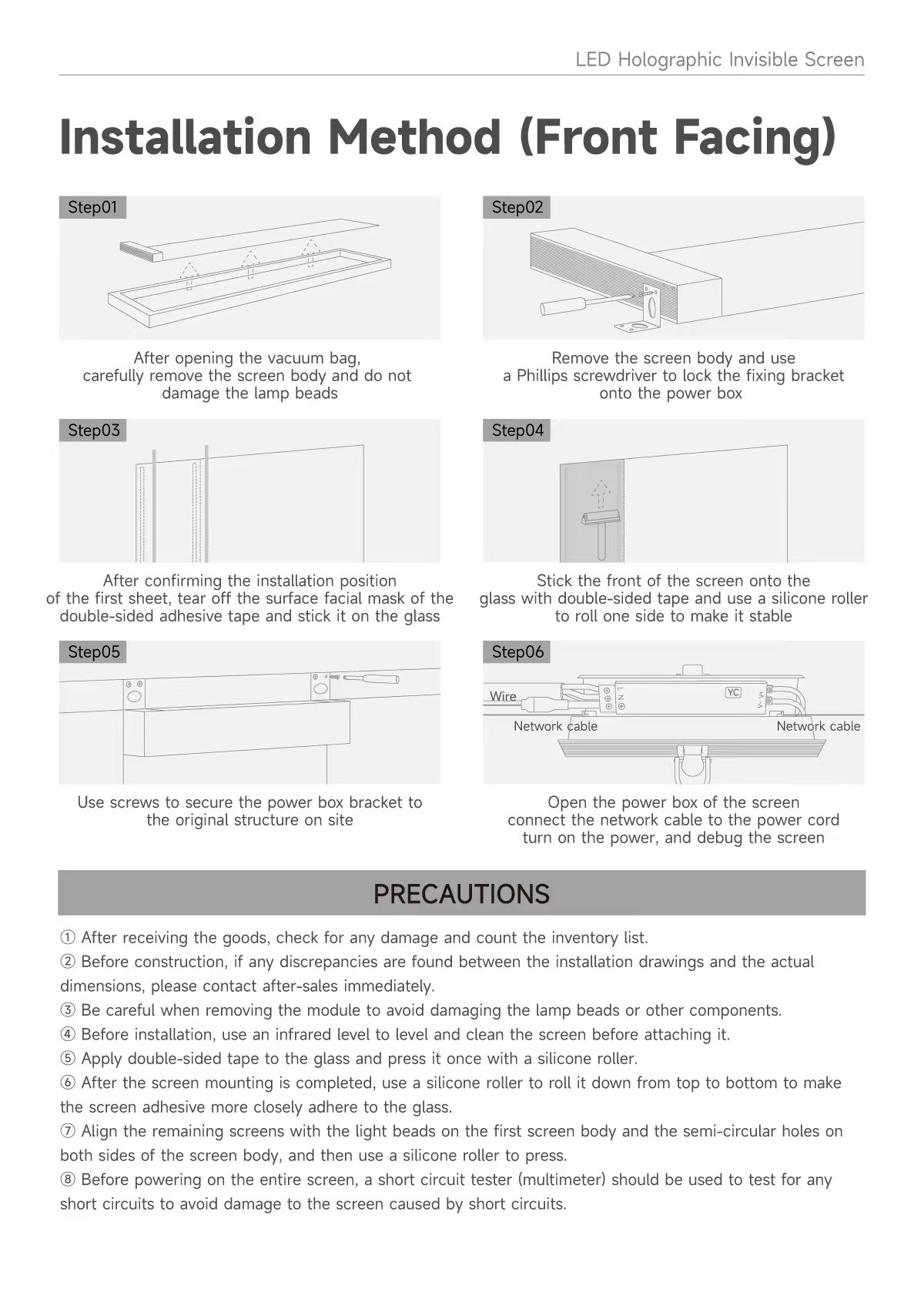

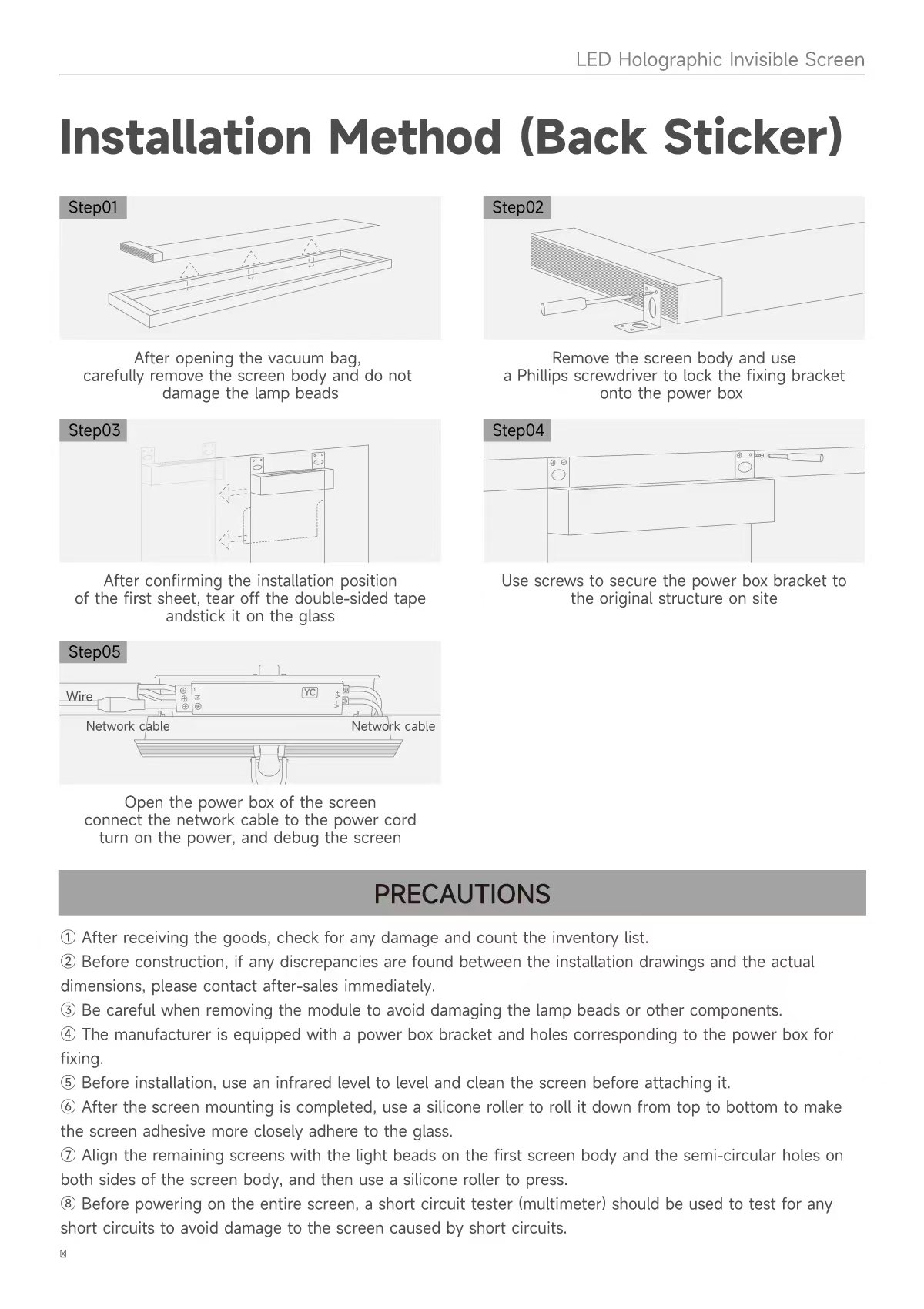

Two documented methods ship with every system — switch between them below, or watch the install footage.

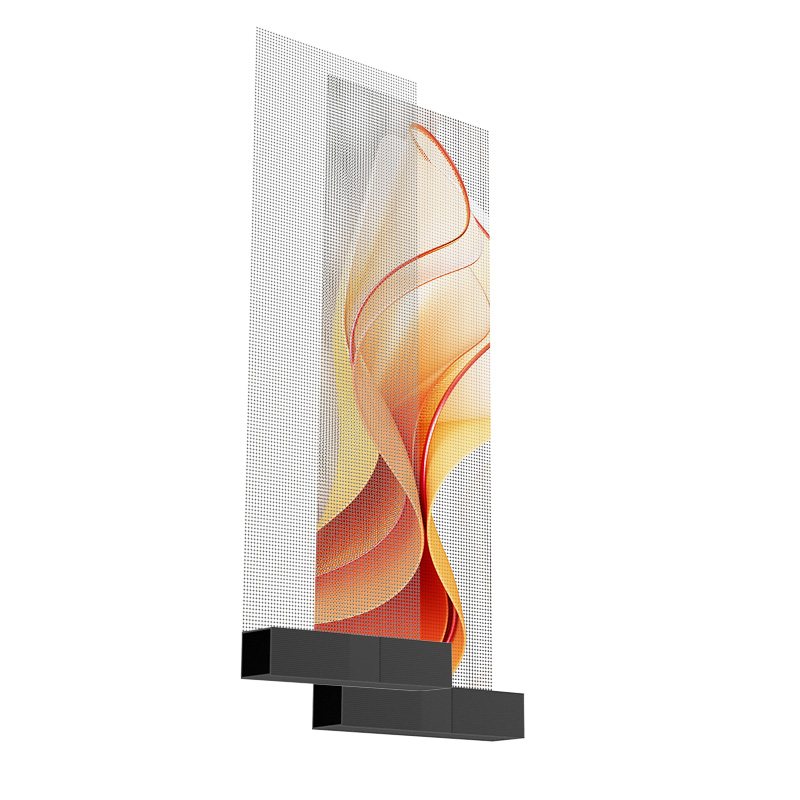

Open the vacuum bag carefully (never press the beads); lock the fixing bracket onto the power box.
Confirm the first sheet's position, tear the adhesive facing, stick onto the glass and roll flush with a silicone roller.
Screw the power-box bracket to the site structure; connect network and power, power on and commission.

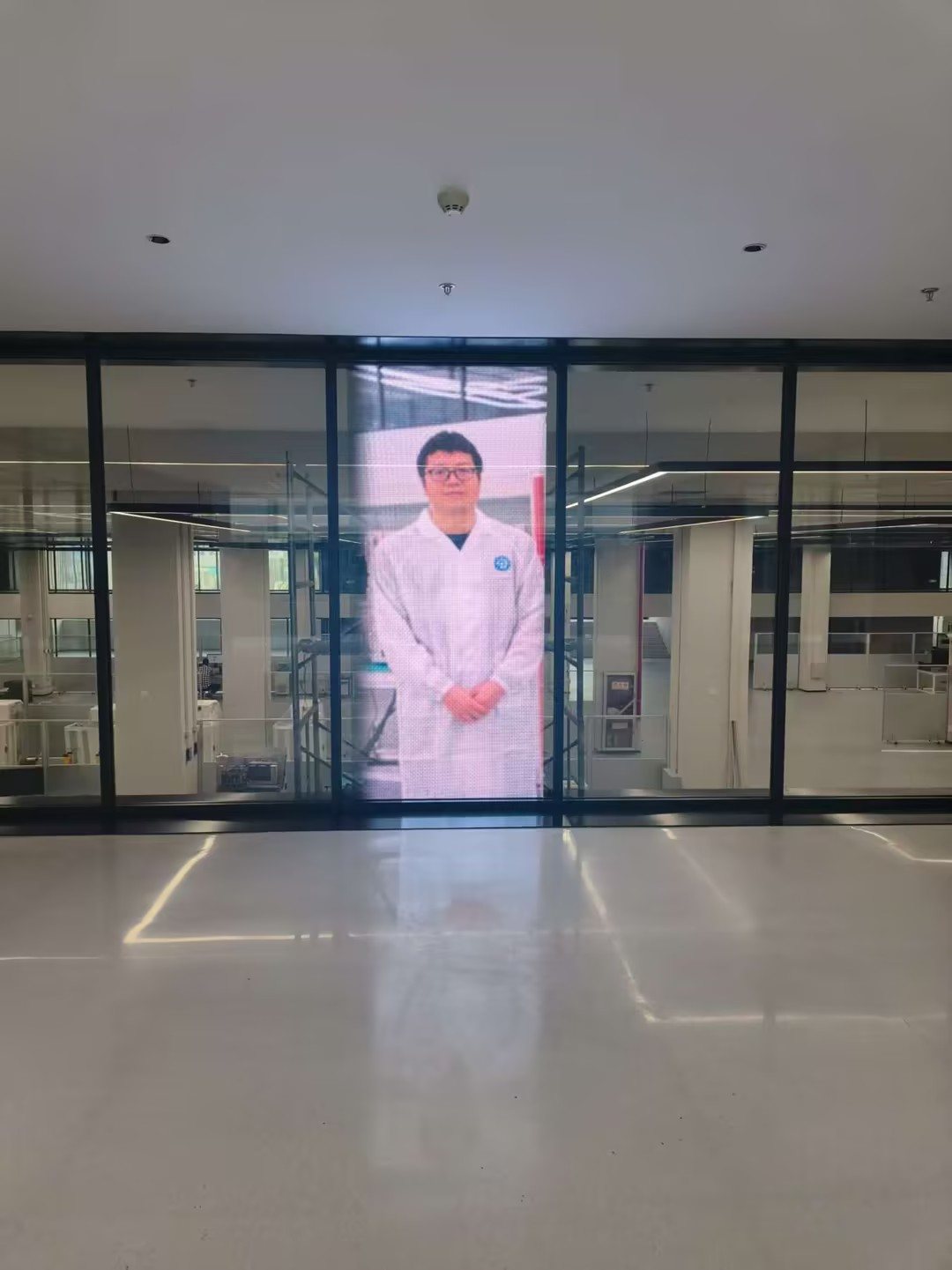

Spliced P6.25 modules across the showroom glazing — content floats over the demo floor.
Estée Lauder Shanghai, Baiyun Airport pavilion, Las Vegas Sun Casino Cambodia, Nanning media center…
Close viewing (2–6 m) or 3D content → Holographic. Large spans, budget priority, or longer viewing distances → Crystal Film. We'll confirm against your drawings.
Yes — high-refresh playback at 120 fps gives holographic-style floating 3D on the glass.
Yes, single beads are repairable in place; repair video and guidance are provided.
IP20 — indoor and in-glazing use; it displays outward through the glass.
Per-project quotes, no fixed MOQ. Standard modules typically ship within 2–3 weeks.
Send glazing dimensions and viewing distance — right pitch, clear spec, indicative price within 24 hours.
