Crystal Film LED Screen

Transparent by day. A screen by night.

Self-adhesive transparent LED film — 2.5 mm thin, 90%+ transparency. Stick it on glass and the window becomes a media wall.

≥90%Transparency

2.5mmThickness

1.3kgPer Module

Request a Quote View Full Specs

Request a Quote

01What is it

What is the Crystal Film LED Screen?

Crystal Film is a self-adhesive, flexible transparent LED display: driver-integrated Mini LED beads are encapsulated in a transparent film just 2.5 mm thick. A proprietary adhesive-potting process gives the film its own bond — it applies straight onto glass with no steel structure and no drilling, and plays the moment power and signal are connected. With transparency above 90%, the screen is close to invisible when off and never blocks daylight; lit up, a glass facade or shop window turns into a high-brightness media wall. Patented invisible-grid circuitry with in-bead driver ICs delivers industry-leading clarity, and a 6 cm minimum bend diameter lets the film follow columns, arcs, and shaped glazing.

Crystal Film LED Screen — product overview

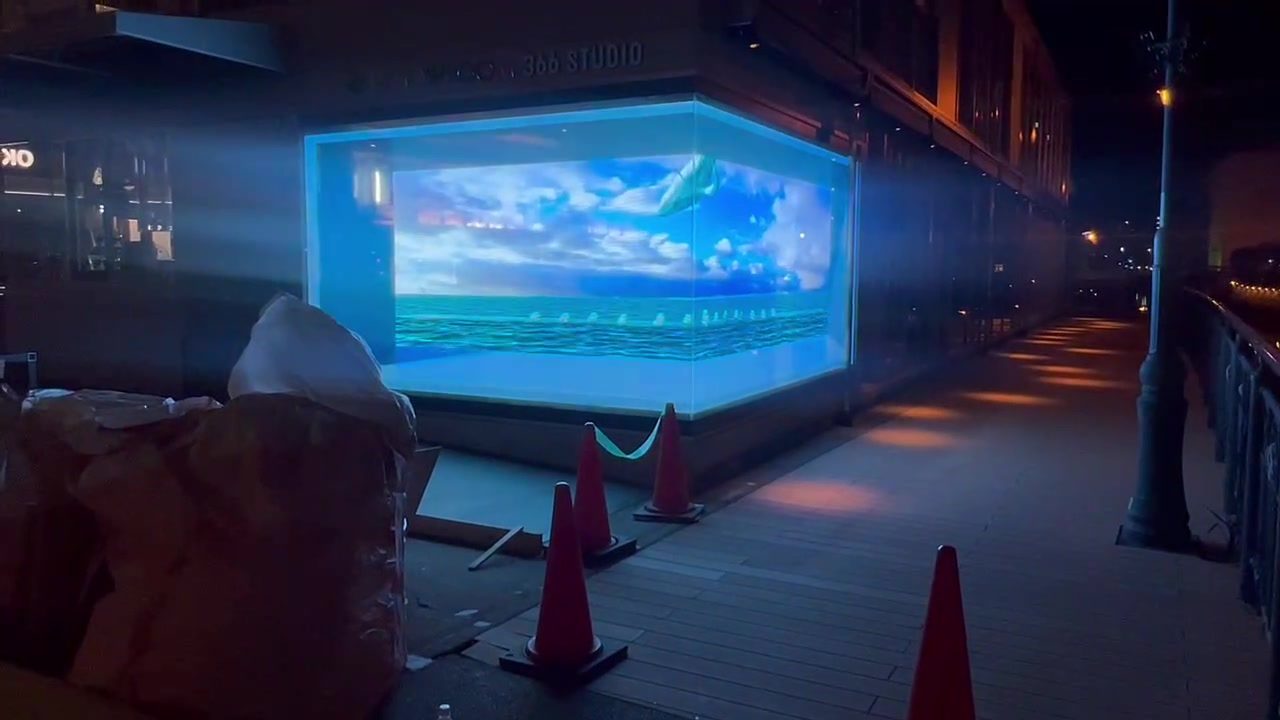

Storefront
Glass Facade

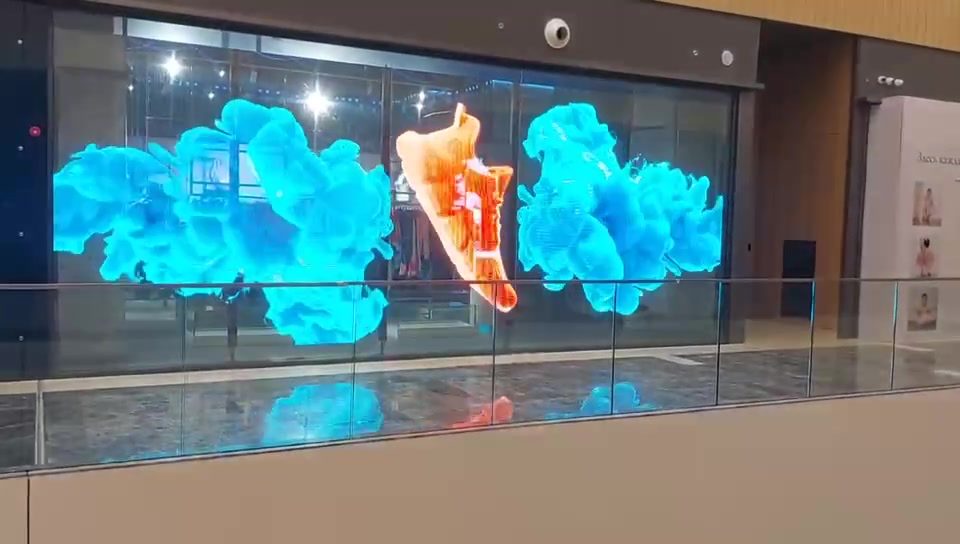

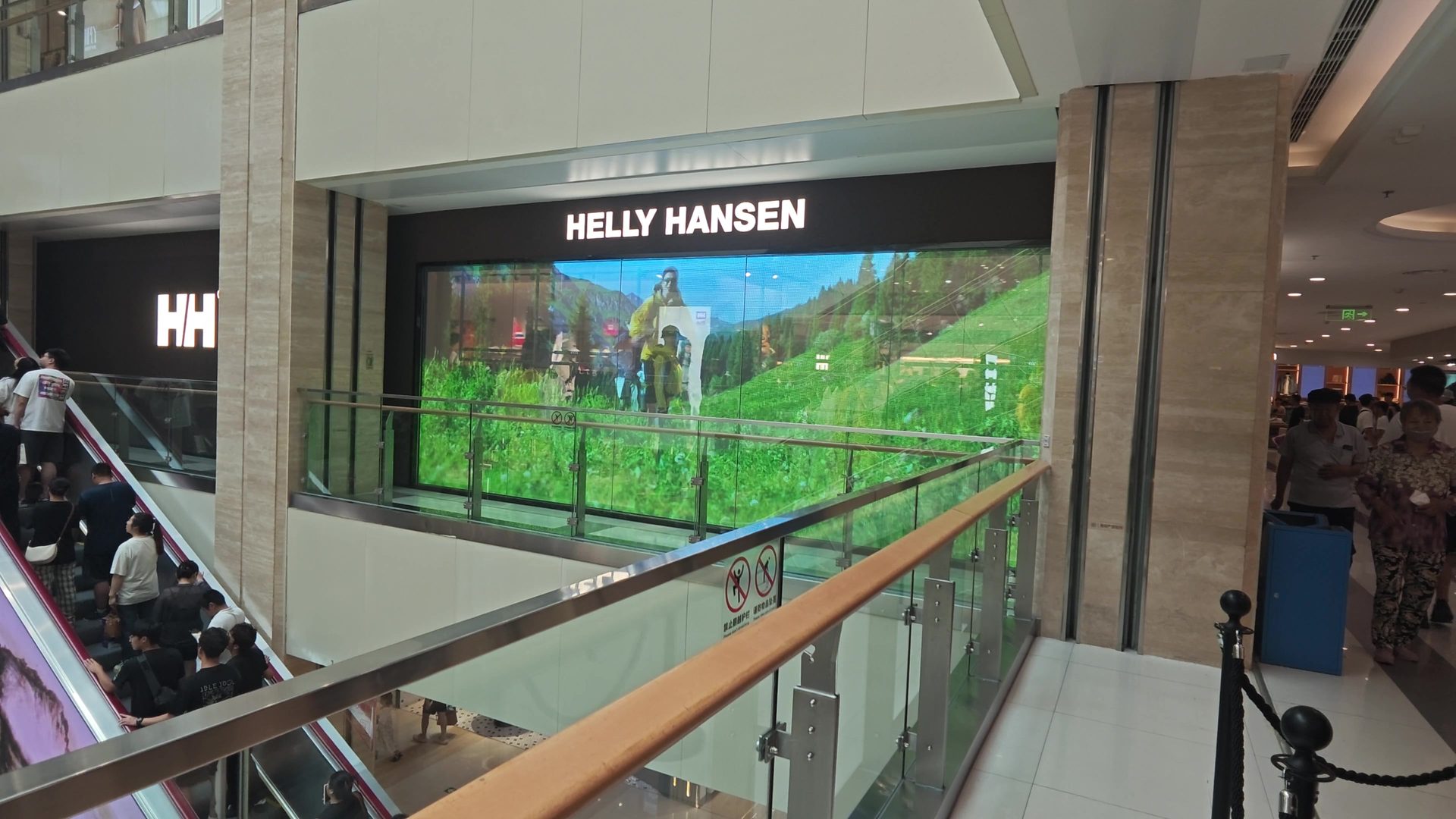

Mall

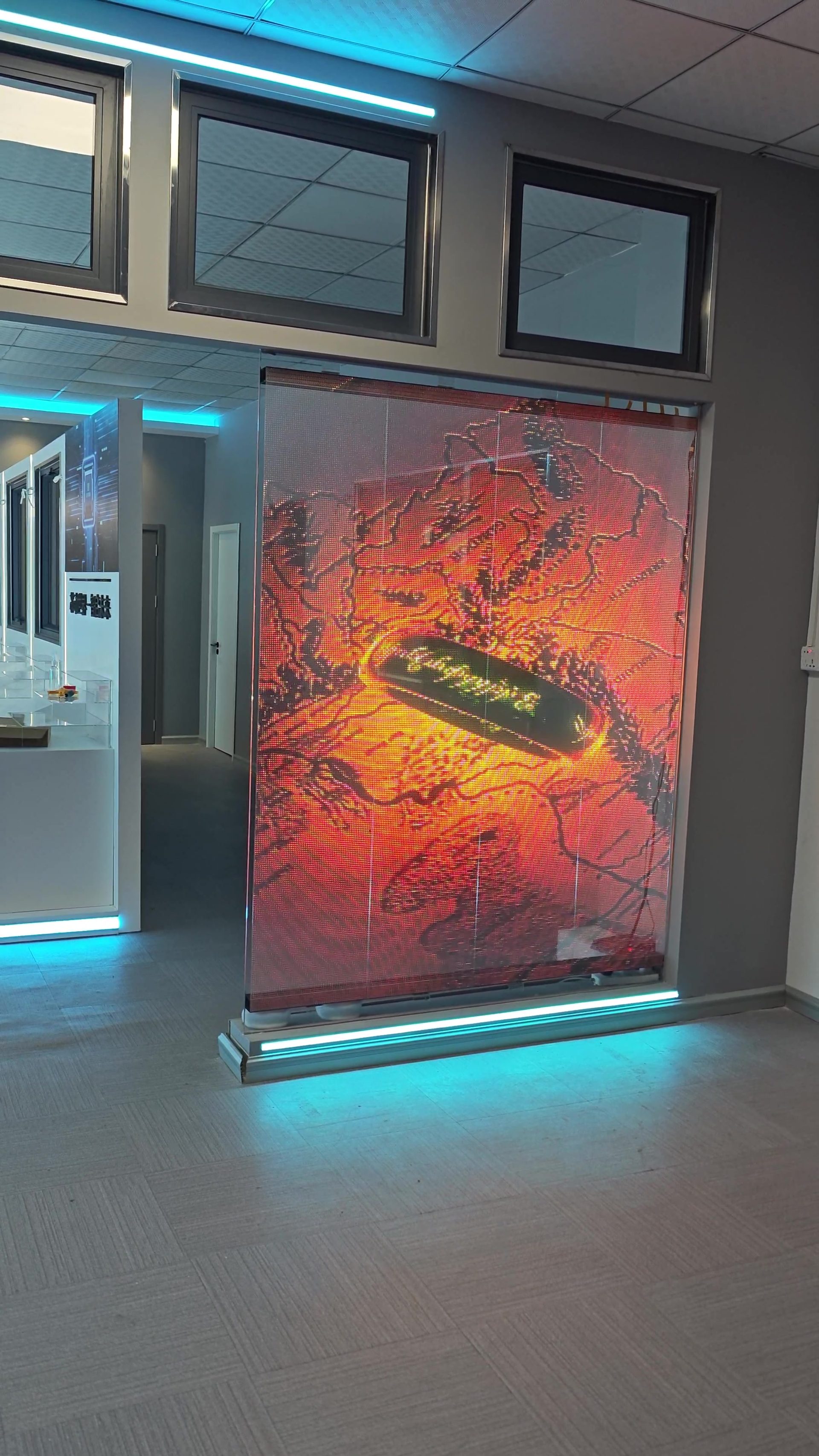

Showroom
Airport
Exhibition

≥0%Transparency

0.0mmScreen Thickness

0kg/m²Weight

0HzRefresh Rate

0hLED Lifespan

Ø0cmMin Bend Diameter

02Core Features

Why teams specify it

High Transparency

90–95% transparency depending on pitch. Patented invisible-grid circuits with in-bead driver ICs keep daylight and sightlines unobstructed — from behind, you look straight through the screen.

Stick & Play — No Steel Structure

The proprietary adhesive-potted film carries its own bond and sticks straight onto glass, strengthening over time. Connect power and it plays — no frame, no drilling, far less install time and cost.

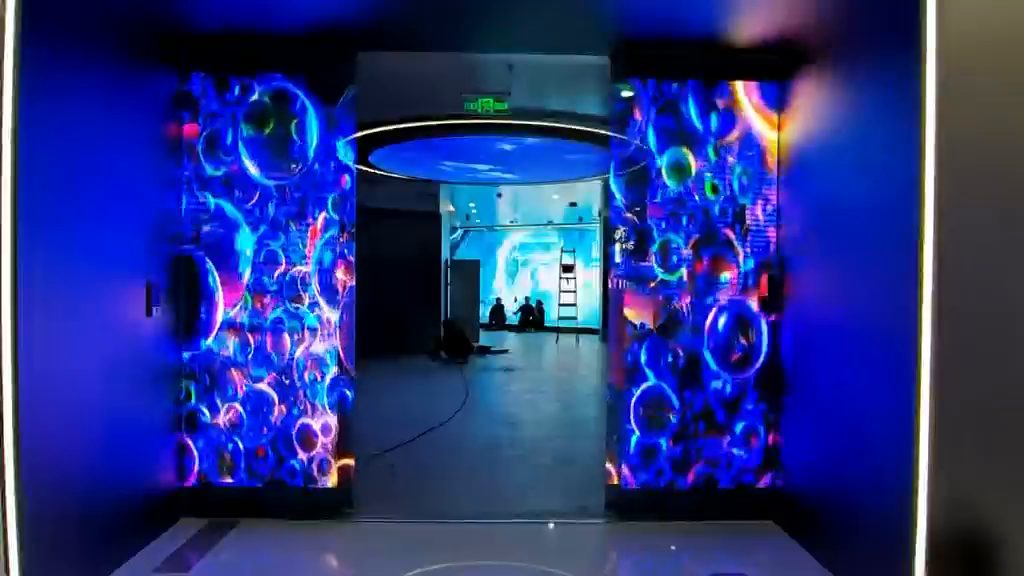

Flexible & Bendable

A minimum bend diameter of just 6 cm lets the film wrap cylinders, arcs, and irregular glazing that rigid panels can never follow.

Ultra-Thin & Light

2.5 mm thin and about 5 kg/m² — near-zero load on the curtain wall, with modules light enough to ship and handle by hand.

Reliable by Design

Bi-directional drive hands over to a backup signal path on any single-point fault, failed beads stay dark instead of flickering, and true 16-bit grayscale keeps gradients smooth.

Weather & Flame Resistant

UV-stable for 5–10 years without yellowing, V1 flame-retardant rating, and a -20 ~ 55 °C operating window for glazed semi-outdoor use.

03Models & Specs

Find the right model

Switch between models for the full specification, or compare the whole range side by side below.

P6.25

Pixel Pitch: 6.25 × 6.25 mm
Module Size: 1000 × 400 mm
Module Resolution: 160 × 64 (10,240 dots)
Pixel Density: 25,600 dots/m²
Transparency: 90%
LED Bead: REE1515
Viewing Distance: ≥ 6 m

Compare the range

Specification	P6.25	P8	P10	P15	P20
Pixel Pitch	6.25 × 6.25 mm	8 × 8 mm	10 × 10 mm	15 × 15 mm	20 × 20 mm
Module Size	1000 × 400 mm	1000 × 400 mm	1000 × 400 mm	990 × 390 mm	1000 × 400 mm
Module Resolution	160 × 64 (10,240 dots)	125 × 50 (6,250 dots)	100 × 40 (4,000 dots)	66 × 26 (1,716 dots)	50 × 20 (1,000 dots)
Pixel Density	25,600 dots/m²	15,625 dots/m²	10,000 dots/m²	4,356 dots/m²	2,500 dots/m²
Transparency	90%	92%	94%	94%	95%
LED Bead	REE1515	REE1515	REE1515	REE2022	REE2022
Viewing Distance	≥ 6 m	≥ 8 m	≥ 10 m	≥ 15 m	≥ 20 m

P6.25

Pixel Pitch: 6.25 × 6.25 mm
Module Size: 1000 × 400 mm
Module Resolution: 160 × 64 (10,240 dots)
Pixel Density: 25,600 dots/m²
Transparency: 90%
LED Bead: REE1515
Viewing Distance: ≥ 6 m

P8

Pixel Pitch: 8 × 8 mm
Module Size: 1000 × 400 mm
Module Resolution: 125 × 50 (6,250 dots)
Pixel Density: 15,625 dots/m²
Transparency: 92%
LED Bead: REE1515
Viewing Distance: ≥ 8 m

P10

Pixel Pitch: 10 × 10 mm
Module Size: 1000 × 400 mm
Module Resolution: 100 × 40 (4,000 dots)
Pixel Density: 10,000 dots/m²
Transparency: 94%
LED Bead: REE1515
Viewing Distance: ≥ 10 m

P15

Pixel Pitch: 15 × 15 mm
Module Size: 990 × 390 mm
Module Resolution: 66 × 26 (1,716 dots)
Pixel Density: 4,356 dots/m²
Transparency: 94%
LED Bead: REE2022
Viewing Distance: ≥ 15 m

P20

Pixel Pitch: 20 × 20 mm
Module Size: 1000 × 400 mm
Module Resolution: 50 × 20 (1,000 dots)
Pixel Density: 2,500 dots/m²
Transparency: 95%
LED Bead: REE2022
Viewing Distance: ≥ 20 m

Shared across every model

Brightness: 2,000 / 4,000 nits (two grades)
Screen Thickness: 2.5 mm
Module Weight: 1.3 kg (≈ 5 kg/m²)
Peak Power: 600 W/m²
Average Power: 200 W/m²
Refresh Rate: 3,840 Hz
Grayscale: 16-bit
Viewing Angle: 160°
Drive Method: Static
Control System: Nova / Colorlight
Input Voltage: AC 110–240 V, 50/60 Hz
Pixel Configuration: R1G1B1
Lifespan: 100,000 h
Operating Environment: -20 ~ 55 °C, 10–90% RH

How to choose

Rule of thumb: the pitch number ≈ the closest comfortable viewing distance in metres. Choose P6.25 for shop windows and close-range retail; P8 or P10 for street-front glazing read at mid distance; P15 or P20 for building facades viewed from across a street or plaza — the wider pitches are also more transparent and draw less power. P5 and P6 pitches are available as engineering customisations for specific projects.

04Size & Splicing

One module, any wall

Standard 1000 × 400 mm modules tile edge-to-edge in both directions — stack rows and columns into any screen size, with flat ribbon jumpers carrying signal between modules. Modules can also be cut to match the glazing's mullion grid, so the screen follows the facade rather than the other way round.

Cut-to-size and custom layouts available per project
